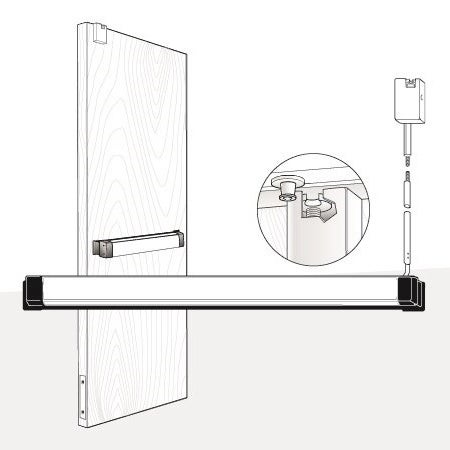

ADAMS RITE – 8900 (LIFE-SAFETY) | 3900 SERIES (FIRE-RATED) CONCEALED VERTICAL ROD EXIT DEVICE

Description

8900 Sereies Surface Concealed Vertical Rod Exit Device: designed for wood applications that require a life-safety exit device with concealed vertical top rod and surface concealed actuator single-point latching in header.

3900 Series Fire-Rated Surface Concealed Vertical Rod Exit Device: designed for wood applications that require a fire-rated exit device with concealed vertical top rod and surface concealed actuator single-point latching in header.
Designed for use in applications with single doors or pairs of doors.

• Push bar made of extruded aluminum (variety of finishes)
• Device is non-handed
• Push bar length: standard dimensioned for 762mm (30″), 914.4mm (36″), 1066.8mm (42″), and 1219.2mm (48″) openings
• Bar height: standard model adjusts from 762mm (30″) to 1117.6mm (44″)
• Standard configuration suitable up to 1676.4mm (66″)
• Dogging: standard with hex key or optional cylinder. Electric dogging also available
• Projection: 66.7mm (2-5/8″) when fully projected, 41.3mm (1-5/8″) when dogged
• Standard package: individually boxed
• Shipping weight: 5.44 kg (12 lbs)
