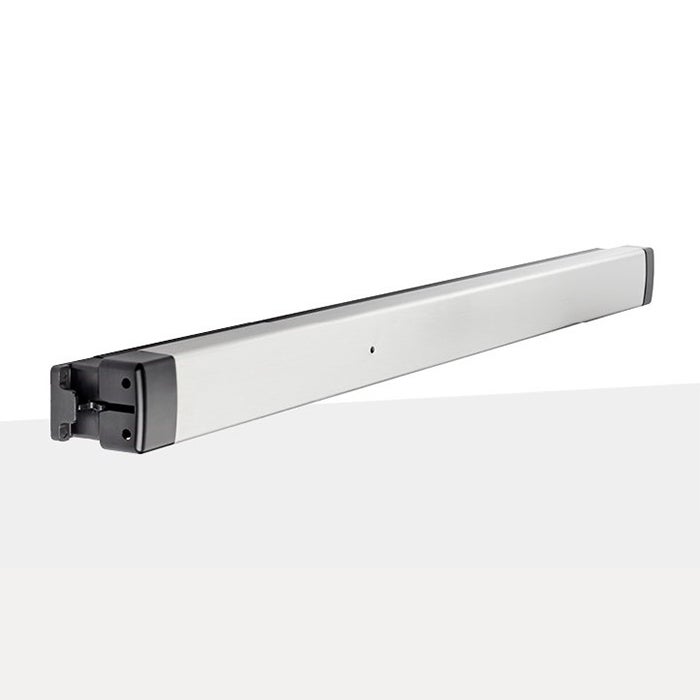

ADAMS RITE – 8800 SERIES (LIFE-SAFETY) NARROW STILE STARWHEEL RIM EXIT DEVICE

Description

The 8800 Series Narrow Stile Rim Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with Starwheel interlocking solution.

• Push bar made of extruded aluminum (variety of finishes)
• Device is non-handed
• Push bar length: standard dimensioned for 762mm (30″), 914.4mm (36″), 1066.8mm (42″), and 1219.2mm (48″) openings
• Stile width: 50.8mm (2″) minimum
• Dogging: standard with hex key or optional cylinder. Electric dogging also available
• Standard package: individually boxed
• Shipping weight: 4.54 kg (10 lbs)
