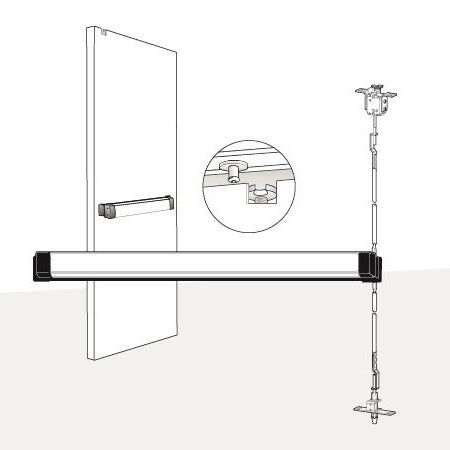

ADAMS RITE – 8500 SERIES (LIFE-SAFETY) | 3600 SERIES (FIRE-RATED) CONCEALED VERTICAL ROD EXIT DEVICE

Description

8500 Series Concealed Vertical Rod Exit Device: Designed for hollow metal applications that require a life-safety exit device with concealed vertical rods for two-point locking.

3600 Series Fire-Rated Concealed Vertical Rod Exit Device: Designed for hollow metal applications that require a fire-rated exit device with concealed vertical rods for two-point locking.
Designed for use in applications with single doors or pairs of doors.

• Extruded aluminum pushbar
• Non-handed
• Push bar length: 762mm (30″), 914.4mm (36″), 1066.8mm (42″), and 1219.2mm (48″) openings
• Door thickness: 44.5mm (1-3/4″) standard, up to 57.2mm (2-1/4″)
• Door height: Standard configuration for doors up to 66″ (1676.4mm)
• Stile width: 88.9mm (3-1/2″) minimum
• Dogging: standard with hex key or optional cylinder. Electric dogging also available
• Standard package: individually boxed
• Shipping weight: 4.99 kg (11 lbs)
