ADAMS RITE – 8600 (LIFE-SAFETY) NARROW STILE CONCEALED VERTICAL ROD EXIT DEVICE

Contact for Pricing

For narrow stile aluminum applications

SKU: AD8600 Category:

Description

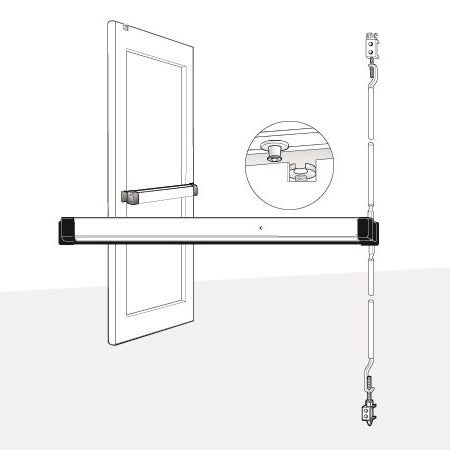

The 8600 Series Narrow Stile Concealed Vertical Rod Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with concealed vertical rods for two-point locking.
Designed for use in applications with single doors or pairs of doors.

  • Push bar made of extruded aluminum (variety of finishes)
  • Device is non-handed
  • Push bar length: standard dimensioned for 762mm (30″), 914.4mm (36″), 1066.8mm (42″), and 1219.2mm (48″) openings
  • Bar height: standard model adjusts from 762mm (30″) to 1117.6mm (44″)
  • Door thickness: 44.5mm (1-3/4″) to 57.2mm (2-1/4″)
  • Stile width: 50.8mm (2″) minimum
  • Projection: 66.7mm (2-5/8″) when fully projected, 41.3mm (1-5/8″) when dogged
  • Standard package: individually boxed
  • Shipping weight: 5.44 kg (12 lbs)
