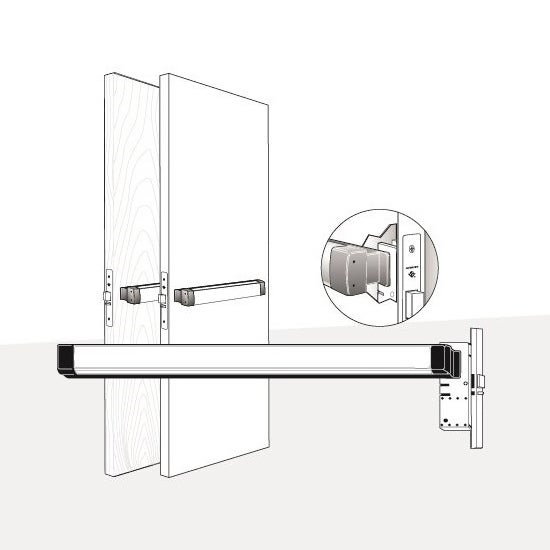

ADAMS RITE – 8300 SERIES (LIFE-SAFETY) | 3300 SERIES (FIRE-RATED) MORTISE EXIT DEVICE

Contact for Pricing

Both designed for hollow metal and wood applications

SKU: AD3300-8300 Category:

Description

The 8300 Series Mortise Exit Device is designed for hollow metal and wood applications that require a life-safety exit device with mortise locking solution.
The 3300 Series Fire-Rated Mortise Exit Device is designed for hollow metal and wood applications that require a fire-rated exit device with mortise locking solution.

  • Designed for use in applications with single doors or pairs of doors
  • Extruded aluminum pushbar
  • Specify handing and bevel (if applicable)
  • Push bar length: Standard sizes 762mm (30″), 914.4mm (36″), 1066.8mm (42″), and 1219.2mm (48″) openings
  • Backset: 69.9mm (2-3/4″) only
  • Stile width: Minimum 5″ [127.0 mm]. Door construction may require additional stile width to meet fire ratings and provide adequate strength
  • Projection: 66.7mm (2-5/8″) fully projected, 41.3mm (1-5/8″) when dogged
  • Fasteners: standard, self-tapping screws and machine screws
  • Cylinders available separately
  • Entry trim functions available separately
  • Standard package: individually boxed
  • Shipping weight: 4.99 kg (11 lbs)
