The RCI F1 Series electric strikes are built with a unique anti-vibration feature built-in and a “Pry-Guard” for tamper-resistance.

Categories: ,

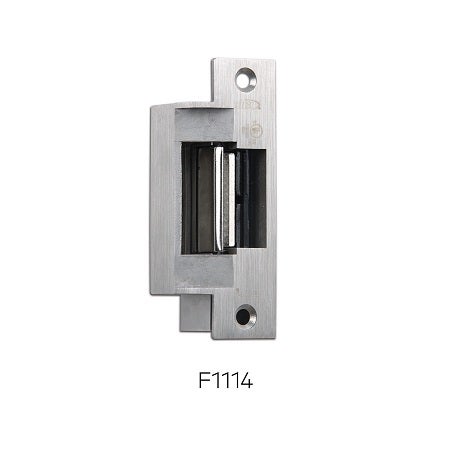

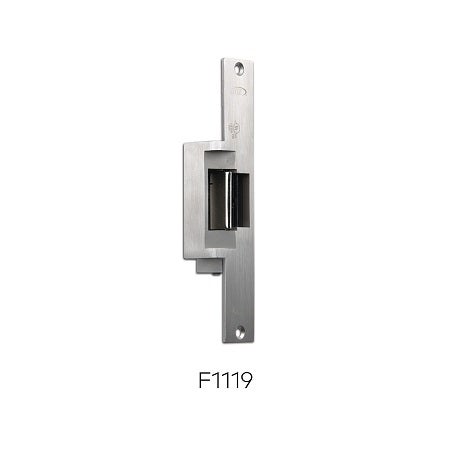

The F1 series of centerline strikes are made of stainless steel and feature a faceplate with square corners. The RCI F1114 is ideal for hollow metal frames and the RCI F1119 is best utilized with aluminum and wood frames.


  • Accommodates 1/2″ (12.7mm), 5/8″ (16mm) or 3/4″ (19mm) latch projection
  • Up to 1/4″ (6.4mm) horizontal adjustment, relieves side-load pressure, ensuring proper latch alignment
  • Saddle-mount housing design for enhanced strength and durability
  • Tamper-resistant pry-guard concealed inside the frame
  • Energy efficient coil design
  • Mounting tabs, shims and fasteners included
  • Non-handed
  • 200mA 11-16VAC, 12VAC/VDC Or 24VAC/VDC (Max at 12VDC)
  • 1,500lbf Static 70ft-lb Dynamic
  • 500,000 Cycles
  • Fail-Secure
  • CAN/ULC S104 UL 10C 1-1/2-Hour
  • UL 1034 burglary-resistant Listed
  • UL 10C, 1-1/2 hour fire-rating Listed
  • Certified to ANSI/BHMA standard A156.31, Grade 1
  • 5 Year Limited Warranty
