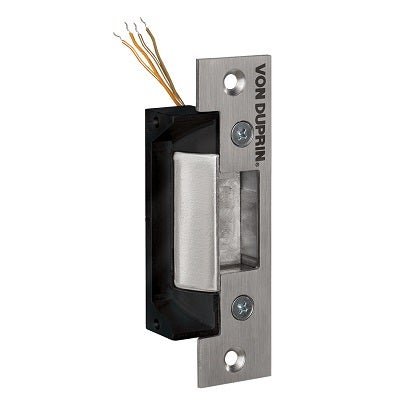

VON DUPRIN – 4200 SERIES ELECTRIC STRIKE

Contact for Pricing

Designed for cylindrical lock and deadlatch applications

Categories: ,

Description

The 4200 Series is a traffic control solution for internal doors. It features a shallow back box, low current draw, field selectable voltage and fail safe/fail secure conversion without disassembly.

Features:

  • Designed for cylindrical applications
  • Suitable for interior doors with hollow metal or aluminum frames
  • Optional latchbolt monitoring
  • 4 in-field configurations
  • Shallow 1-3/8” backbox depth
  • Field-selectable 12/24 VDC
  • Non-handed, internal solenoid design
  • Low current draw for PoE installations
  • Field-selectable power failure mode without disassembly
  • Heavy-duty stainless steel faceplate
  • 1000 lbs. static strength
  • 70 ft-lbs. dynamic strength
  • 500,000 cycles endurance tested
  • 12/24 VDC
  • Standard 4 7/8″ faceplate
  • 1-3/8″ backbox depth
  • BHMA 630 / US32D stainless steel (faceplate), satin finish
  • ANSI/BHMA 156.31, grade 1
  • Limited 5 year warranty
