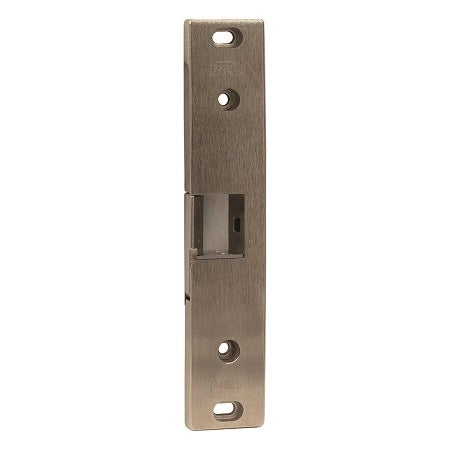

DORMAKABA – RCI 0163 1/2″ RIM ELECTRIC STRIKE

Contact for Pricing

Designed to fit in tight situations where the exit device is mounted very close to the door frame, e.g. aluminum storefront applications.

SKU: DK-RCI0163 Categories: ,

Description

This solenoid rim strike is a surface-mounted electric strike designed to work with Pullman style rim exit device latches.

Features:

  • Designed to fit in tight situations where the exit device is mounted very close to the door frame, e.g. aluminum storefront applications
  • For maximum latch engagement, the strike keeper has been designed to pivot out of the strike body versus rolling out of the strike
  • Accommodates 1/2“ (13 mm) latch projection
  • Horizontal adjustment ensures proper latch positioning to compensate for door misalignment – up to 1/4“ (6.4 mm)
  • Shim may be added to the strike cavity to engage with misaligned deadlatch
  • Lockdown holes for secure mount
  • Cooler operation – runs cool to the touch; no suppressor kit needed
  • High-grade stainless steel ensures superior strength and creates a sleek aesthetic
  • Endurance: 500,000 Cycles
  • Strength: 1,500lbf Static, 70ft-lb Dynamic
  • Energy: 270mA (max at 12VDC), 11-16VAC, 12VAC/VDC Or 24VAC/VDC
  • Fail secure
  • Non-handed
  • Plug-in wire connectors
  • UL294 Listed for Access Control Unit Accessory
  • UL1034 burglary-resistant Listed
  • 5 year limited warranty
