Contact for Pricing

Ideal for commercial or residential applications

SKU: DX-DM17 Categories: ,

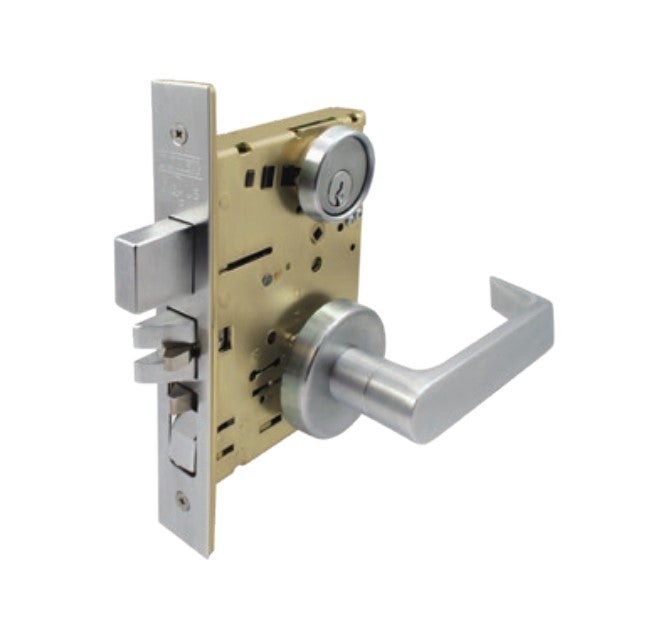

The DOREX DM is a premium, heavy-duty, mortise lock that is available in a wide variety of trim and handle styles. Ideal for commercial or residential applications with high traffic and/or enhanced security requirements.

  • For doors 1-3⁄4 –2-1⁄4″ (45 – 57 mm) thick
  • Handed, field reversible
  • 2-3⁄4″ (70 mm) backset
  • Faceplate adjusts for bevelled doors
  • Brass, 2 piece latchbolt with 3⁄4″ (19 mm) throw
  • Deadbolt functions include brass deadbolt with two security pins; 1″ (25.4 mm) throw
  • Adjustable faceplate for bevelled doors
  • Single action egress
  • Square or round rose trim available
  • Three (3) escutcheon sizes available
  • Contemporary lever and knob styles available
  • Strike and dust box
  • Keyed functions include 6-pin mortise cylinder, Schlage “C” keyway with 2 keys
  • Small format interchangeable core (SFIC) mortise cylinder available (SFIC sold separately)
