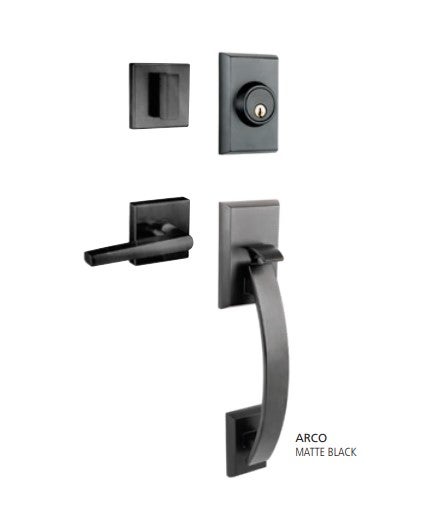

ARCO HANDLESET

Description

Classic entry handleset for residential applications.

• Zinc die-cast exterior trim
• For doors 1-3⁄4″ – 2-1⁄4″ (44.5 – 57 mm) thick
• Non-handed (reversible)
• 4-Way latch (Mortise or Drive-in installation)
• Adjustable backset: 2-3⁄8″ – 2-3⁄4″ (60 – 70 mm)
• Zinc spring latch bolt, 1⁄2″ (12.7 mm) throw
• Steel deadbolt, 1″ (25.4 mm) throw
• Linea interior lever trim with square rose
• Other interior trims available (sold separately)
• 5-pin brass cylinder
• Weiser keyway with 2 keys
