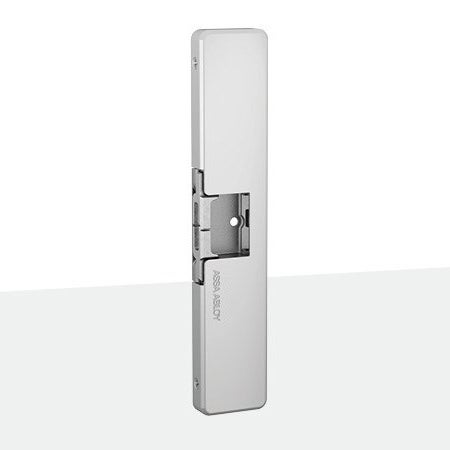

ADAMS RITE – 7800 ELECTRIC STRIKE FOR RIM EXIT DEVICES WITH STARWHEEL/INTERLOCKING TYPE LATCHBOLTS

Contact for Pricing

Starwheel/Interlocking latchbolt (8800 & 8700 Series, EX88)

SKU: AD7800 Category:

Description

This non-handed, low-profile, surface mounted electric strike features an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs [680.4 kg] of holding force in fail secure mode. Internally mounted dual solenoid operates on 12 or 24 VDC power. Provides electrical remote control, allowing door to open without actuation of the exit device.

  • Accommodates Starwheel/Interlocking latching mechanism of Adams Rite 8800, 8700, EX88 Series Rim Exit devices
  • Voltage: field selectable, dual voltage 12 or 24 VDC
  • Current draw: 0.45A at 12 VDC, 0.2A at 24 VDC
  • Field selectable fail safe/fail secure
  • Standard package: individually boxed with spacer plates and mounting screws
  • Shipping weight: 0.91 kg (2 lbs)
