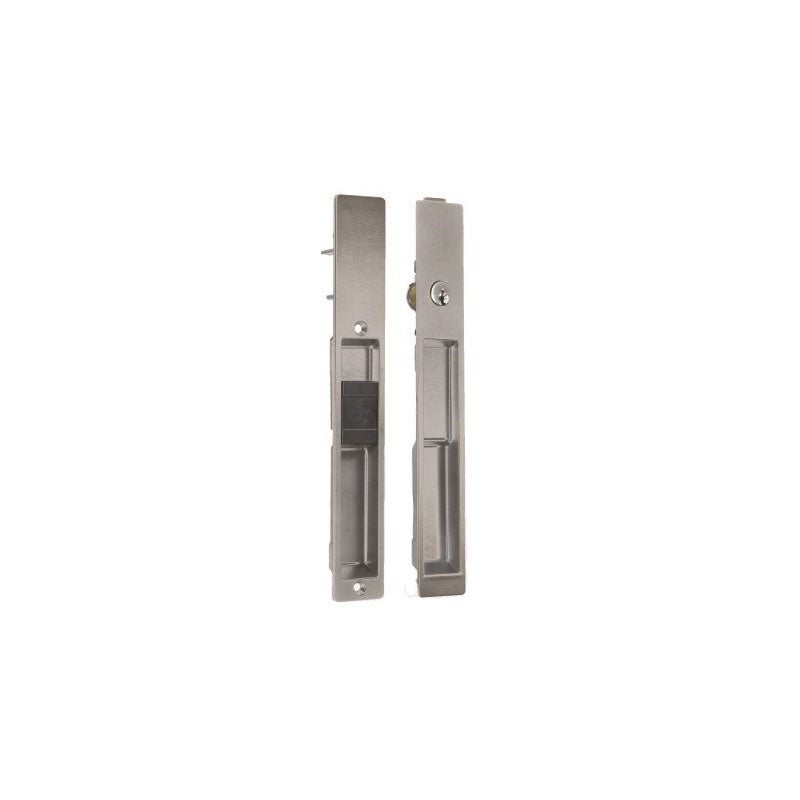

ADAMS RITE – 4189, 4190 FLUSH LOCKSETS (INCLUDING DEADLOCK)

Name: ADAMS RITE - 4189, 4190 FLUSH LOCKSETS (INCLUDING DEADLOCK)
SKU: AD4189-90

Contact for Pricing

For sliding doors

Options

Finishes

Clear

SKU: AD4189-90 Category: Adams Rite

Description
Additional information

Description

Projecting only 1/10″ [2.5 mm] from the door stile on either side, the all-metal 4189,4190 Flush Locksets allow doors to slide freely past other sliding units or stationary panels. There are no projecting handles to prevent doors from being stacked in a wall pocket. Not recommended for wood doors.

Escutcheons: Zinc, alloy, satin silver, epoxy
Anti-lift mechanism; adjustable, stainless steel bolt is self-protecting
Standard package: individually boxed with mounting screws. 4190 with cylinder, 4189 without cylinder
Shipping weight: 0.57 kg (1-1/4 lbs)

Additional information

Backset	Variable, min 15.9mm (5/8"), max 32.5mm (1-9/32") from face of lock to escutcheon
Stile depth	Minimum clear depth: backset plut 14.3mm (9/16")
Options	Outside key-cylinder operation required 4190, Outside key-cylinder operation not required 4189, Dummy set also available 4195, Interior pull available separately 4413
Finishes	Black, Dark Bronze, Clear Anodized
