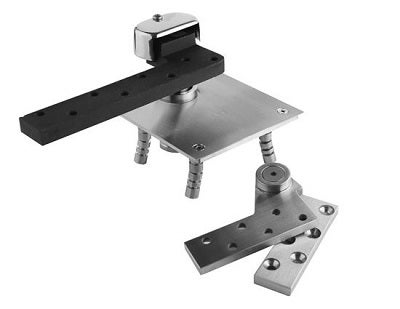

ABH – L0117 PIVOT SET

Description

For use on 1-3/4″ lead-lined doors.

Details:

• L019 intermediate pivot required (order separately)
• Handed – Specify LH or RH
• Maximum door load 1,750 pounds
• Maximum door width – 48″
• UL listed for use on 3-hour fire rated doors – Standard
• Heavy Duty bearings
• Stainless steel base material
• Average weight per unit = 9 lbs
• Doors ranging from 60″ to 90” tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30″ in door height
• Includes: L0180 top pivot, L0117B bottom pivot
• Meets or exceeds ANSI C070121 & C07202
