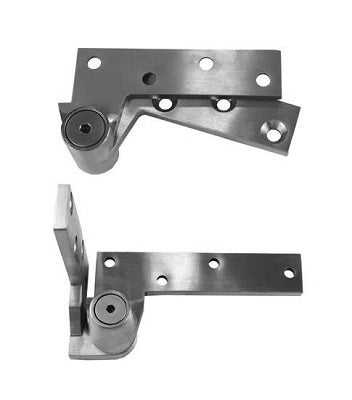

ABH – 0195 PIVOT SET

Description

Details:

• 019 intermediate pivot recommended (order separately)
• Handed – Specify LH or RH
• Maximum door load 450 pounds
• Maximum door width – 48″
• UL listed for use on 3-hour fire rated doors – Standard
• Heavy duty bearings
• Stainless steel base material
• Average weight per unit = 3.5 lbs
• Doors ranging from 60″ to 90” tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30″ in door height
• Includes: 0180 top pivot, 0195 bottom pivot
