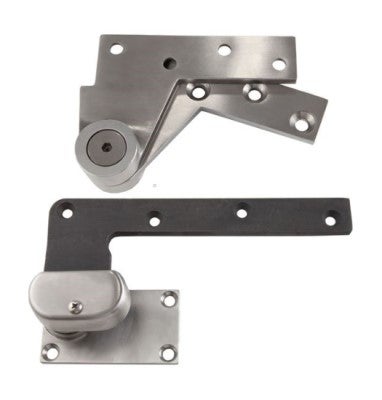

ABH – 0147 – 1.5 PIVOT SET

Description

Details:

• 019-1.5 Offset intermediate pivot required (order separately)
• Handed – Specify LH or RH
• Maximum door load 350 pounds
• Maxium door width – 48″
• UL listed for use on 3-hour fire rated doors – Standard
• Heavy duty bearings
• Stainless steel base material
• Average weight per unit = 5 lbs
• Doors ranging from 60″ to 90” tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30″ in door height. (ie, 120″ tall door should use two intermediate pivots)
• Includes: 0180 -1.5 top pivot, 0147-1.5 bottom pivot
