Contact for Pricing

SKU: DX9500EL Category:

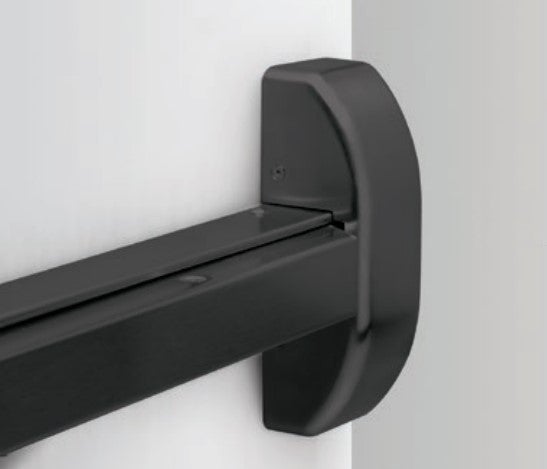

The Electronic Latch Retraction (EL) option for the 9500 Series exit devices provides the ability to remotely retract the latchbolt. Designed for entrance or exit doors (panic or fire-exit hardware) where remote unlocking, dogging or access control is required.

  • cUL/US Listed, Panic Exit or Fire Exit Hardware

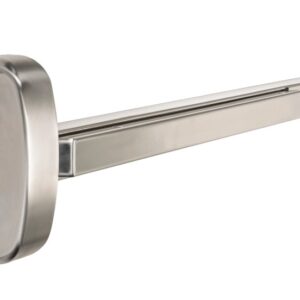

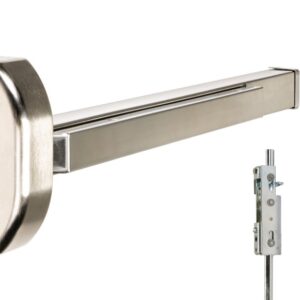

  • Available for all 9500 Exit Device models (Fire Exit or Panic Hardware) – including 9500M and 9500CV
  • Motor driven push-pad retraction for smooth and quiet operation
  • On-board diagnostics with audible feedback
  • Easy post-installation adjustment
  • Electric dogging rated for continuous duty with auto reengagement if push-pad is pulled from dogged position
  • Low Current Draw device (900mA / 215mA); field adjustable to high torque (2A / 250mA) if required for tough applications
  • Power input required: 24VDC ±10%
  • Power supply, power transfers, request-to-exit and access control readers, switches, buttons, sensors, etc. – all sold separately
