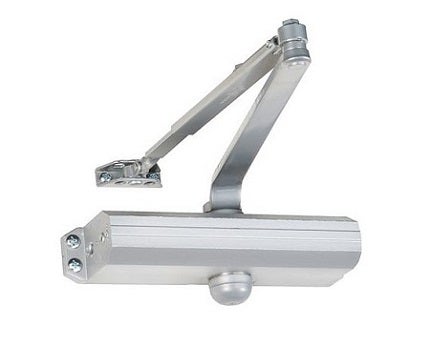

YALE – 51 SERIES DOOR CLOSER

Description

Yale® 51 Series Closers are designed to fit almost any application and are the choice of engineers worldwide. They are ideal for use with aluminum store front doors and frames, yet they also complement wood or metal door installations.

• Exceeds 12 million cycles
• Non-handed
• Tri-packed (regular arm, top jamb and parallel arm installations)
• Rack and pinion design
• Cast aluminum body
• 1-3/8″ diameter piston
• 5/8″ diameter pinion journals
• Standard, separate and independent latch, sweep and backcheck intensity valves
• 2-7/8″ projection
• All standard arm applications allow doors to swing 180 degrees, conditions permitting
• Staked valves
• Aluminum alloy housing
• ANSI/BHMA A156.4, Grade 1
• ANSI standard A117.1
• UL listed for fire doors
• UL10C, ADA compliant
• ISO 9001
• Warranty: 30 year limited mechanical, 1 year limited finish
