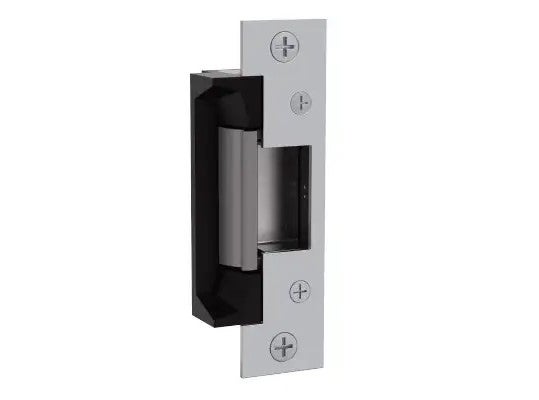

HES 5200 SERIES ELECTRIC STRIKE

Contact for Pricing

The grade 1 solution with horizontal adjustability

SKU: H-5200 Categories: ,

Description

The 5200 series electric strike features an in-frame horizontal adjustable design to simplify the installation process. This feature allows the installer to easily adjust the electric strike opening to accommodate the horizontal position of the latchbolt after the strike has been installed.

Features:

  • Tamper resistant
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance 500,000 cycles
  • Field selectable fail secure/fail safe
  • Dual voltage 12 or 24 VDC/VAC
  • Non-handed
  • Internally mounted solenoid
  • Accommodates 5/8″ – 3/4″ latchbolt (3/4″ with 1/8″ door gap)
  • Strike body depth 1-1/16″
  • Plug-in connector
  • Trim enhancer included
  • ANSI/BHMA A156.31, Grade 1
  • RoHS Compliant
  • UL 1034 burglary-resistant listed
  • UL294 Listed
  • SecuriCare 5 year warranty
