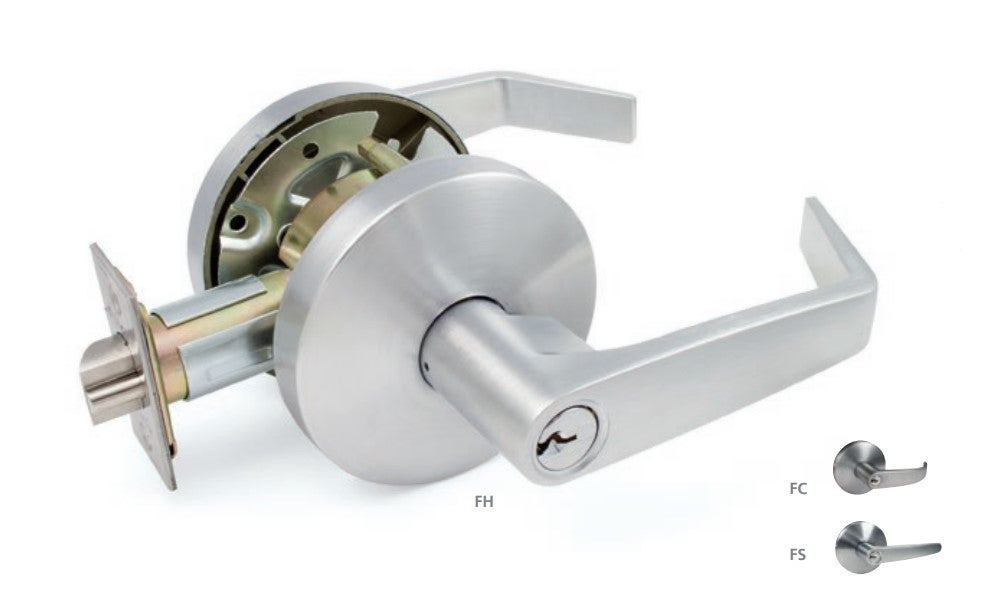

F SERIES COMMERCIAL LOCKSET

Description

DOREX F Series door locks (FC, FH, FS) are designed for moderate to high traffic areas requiring exceptional durability and dependable security. The F Series is ideal for commercial areas such as office buildings, stores, multi-family residences and other mixed projects.

• For doors 1-3⁄8 – 1-3⁄4″ (35 – 44.5 mm) thick
• Non-handed
• 2-3⁄4″ (70 mm) backset
• 2-3⁄8″, 3-3⁄4″ and 5″ (60 mm, 95 mm and 127 mm) backsets available
• Stainless steel spring latch with 1⁄2″ (12.7 mm) throw
• Removable security posts
• Functions with lever clutch release available
• 3-5⁄16″ (84.5 mm) rose diameter
• Concealed mounting plate and screws
• ASA strike
• Keyed functions include 6-pin cylinder, Schlage “C” keyway with 2 keys
