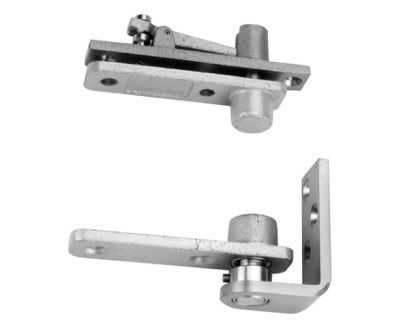

ASSA ABLOY – MCKINNEY JAMB MOUNT PIVOT SET

Description

Designed for applications like schools, hospitals, institutions, and other public buildings.

Details:

• Used in conjunction with CSS-9 Combinations Strike and Stops and DS-6 Emergency Door Stops
• Thrust steel ball bearing in bottom pivot, oil impregnated bronze bearing in top pivot
• Center Hung
• Mortised into side jamb
• Full mortise top pivot
• Non-handed
• 1-5/32″ radius heel edge of door
• Maximum Door Weight (interior or exterior) up to 135 lbs 3’6″ x 8’0″
• All EP-5J Pivot sets are packed with 14 x 1-1⁄2″ wood screws and 1⁄4-20 x 5⁄8″ machine screws
• Ferrous base pivot set polished and plated
