ADAMS RITE – PS-EXIT POWER SUPPLY FOR EXIT DEVICES

Description

This power supply is designed to provide power and control for up to two MLR or LR exit devices. Each exit device is controlled by a timer that is initiated by a switch closure. The timer is user-configured and holds the exit device(s) in the unlatched position for 2 – 60 seconds. At the end of the selected time, the exit device(s) will re-latch. If the switch controlling the exit device is closed longer than the selected time, the exit device remains unlatched until the controlling switch is released.

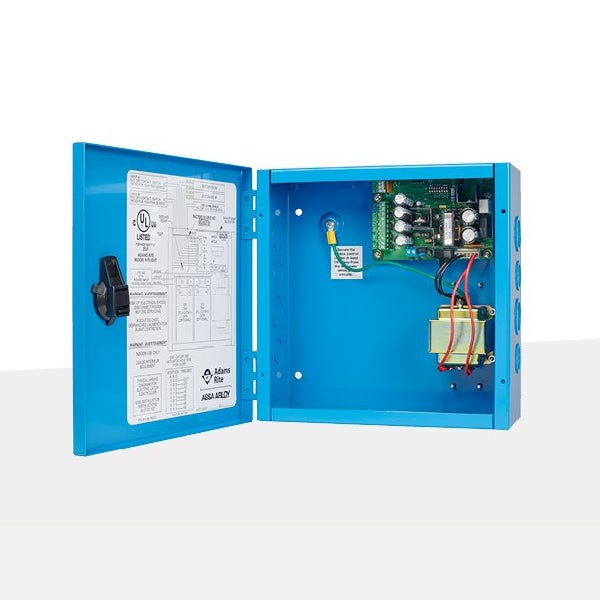

• Hinged, steel cabinet housing of blue, baked enamel finish with knockouts for conduit 254mm x 263.5mm x 104.8mm (10″ x 10-3/8″ x 4-1/8″). Sized to accommodate two sealed, lead acid batteries (7AH, not included)
• Input power: 11VAC, rated output to 0.8A per channel
• Typical output: 24-26 VDC, up to 17A pull-in current
• Shipping weight: 4.5 kg (10 lbs)
