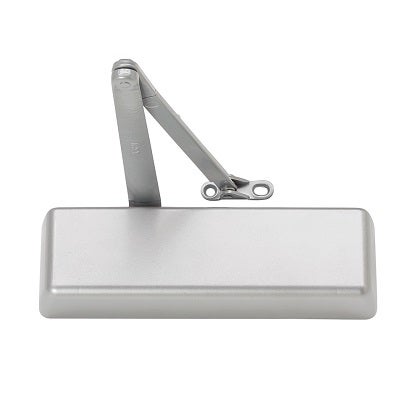

ALLEGION – LCN 4010/4020/4110 SERIES CLOSERS

Description

The 4010, 4020 and 4110 Series are heavy-duty closers that meet demands for high-traffic installations, and each are designed specifically for unique mounting applications.

Features:

• Cast iron cylinder with full-complement bearing
• 1-1/2” diameter piston
• Double heat-treated steel pinion journal
• All-weather fluid
• LCN patented Green Dial spring power indicator
• Application specific handed
• Standard plastic cover
• Adjustable spring sizes 1-5 or 6 only
• Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”
• Non-sized cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
• Meets ADA requirements
• UL and cUL listed for self-closing doors with regular or fusible link arms for self-closing doors
• Tested and certified under ANSI/BHMA A156.4 Grade 1
• Powder coat finish offered in standard colors and a large selection of optional custom colors
• 30 year limited warranty
