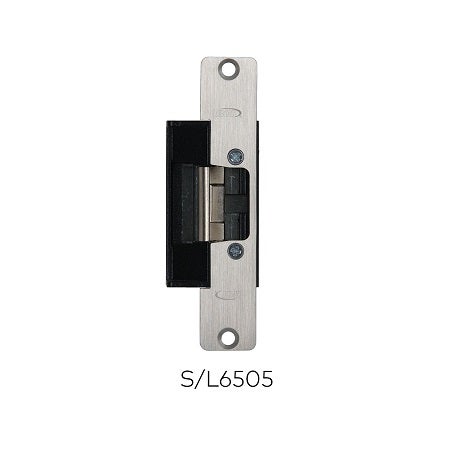

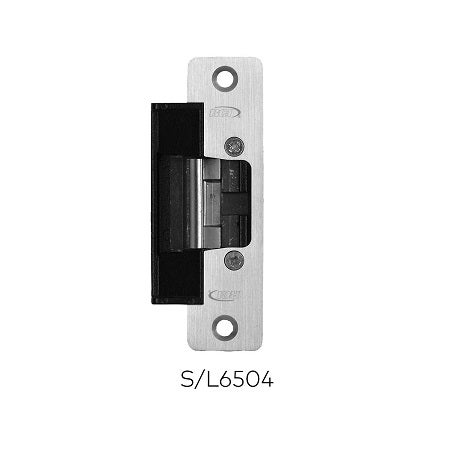

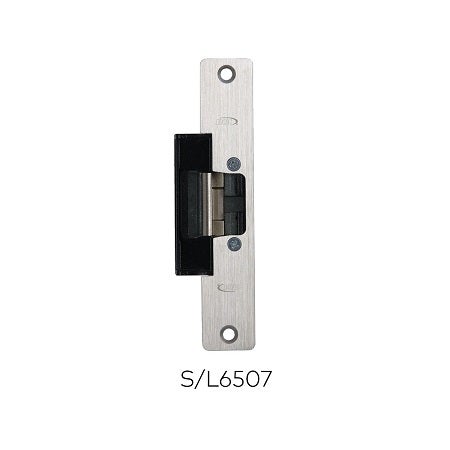

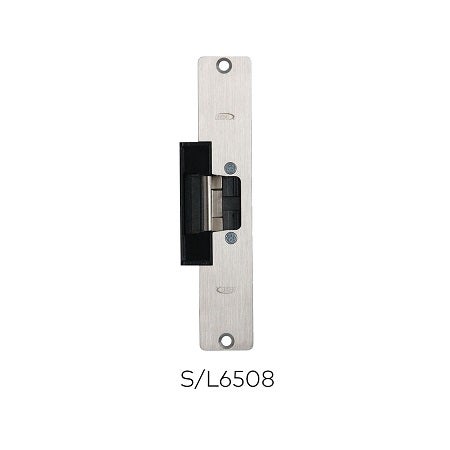

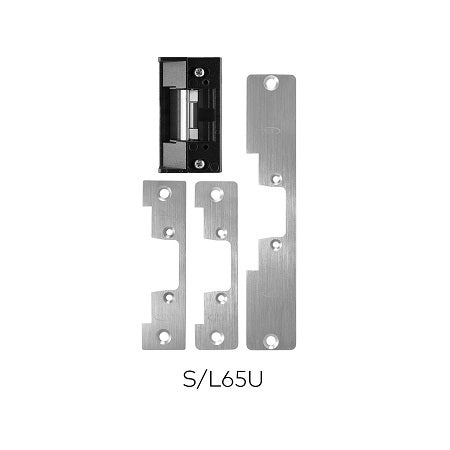

DORMAKABA – RCI 6 SERIES CENTERLINE ELECTRIC STRIKE

Contact for Pricing

Available in standard profile or low-profile options to accommodate different latch projections.

Categories: ,

Description

Features:

  • Standard profile accommodates 3/4″ (19mm) and Low-profile accommodates 1/2″ (12.7mm) or 5/8″ (16mm) latch projections
  • 1/4″ (6.4mm) horizontal adjustment
  • Plug-in wire connectors
  • Trim plate included to cover up irregular frame cut-out
  • Non-handed
  • 375mA Field-Selectable 12/24VDC, 12-24VAC (At 12VDC)
  • 1,500lbf Static 70ft-lb Dynamic (04 & 14 faceplates only. Grade 2, 1,000lbf static for 05, 07 & 08 faceplates)
  • 500,000 Cycles (04 & 14 faceplates only. Grade 2, 1,000lbf static for 05, 07 & 08 faceplates)
  • Field-Selectable Fail-Secure & Fail-Safe
  • Optional Latch & Keeper Monitor Models Available
  • UL 294 Listed for Access Control Unit Accessory (6th Edition)
  • UL 1034 burglary-resistant Listed
  • Certified to ANSI/BHMA standard A156.31, Grade 1,
  • 3 Year Limited Warranty
