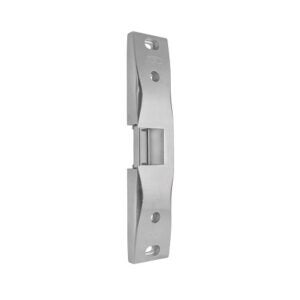

DORMAKABA – RCI 0563 1/2″ RIM ELECTRIC STRIKE

Description

The 0563 ½” rim strike is designed slim for tight-fitting installations with Pullman latch rim exit devices.

Features:

• Surface-mounted – no frame cutting required
• Accommodates 1/2″ to 3/4″ (13mm–19mm) latch projection
• Includes two 1/8″ (3.2mm) spacers to create two additional sizes, 5/8″ (16mm) & 3/4″ (19mm)
• Horizontal adjustment ensures proper latch positioning to compensate for door misalignment – up to 1/4″ (6.4mm)
• Conventional keeper design (one moving part) – promotes even load distribution
• Lockdown holes for secure mount
• Low energy: draws less energy than traditional solenoid strikes
• Cost savings: operate 3X more strikes per power supply
• Cooler operation – runs cool to the touch; no suppressor kit needed
• High-grade stainless steel ensures superior strength and creates a sleek aesthetic
• Non-handed
• Plug-in wire connectors
• 19mA Auto-Sensing 12-24VDC (Steady state current at 12VDC, 153mA peak)
• 1,500lbf Static 70ft-lb Dynamic
• 100,000 Cycles
• Field-Selectable Fail-Safe & Fail-Secure
• Optional Latch Monitor Model Available
• UL 1034 burglary-resistant listed
• 5 Year Limited Warranty
