ADAMS RITE – EXIT POWER SUPPLY

Description

The PS-EXIT Power Supply is specifically designed to protect and optimize the performance of Adams Rite 8000/3000 Series exit devices with Motorized Latch Retraction (MLR) or Electric Latch Retraction (LR) options by delivering filtered and regulated power.

Details:

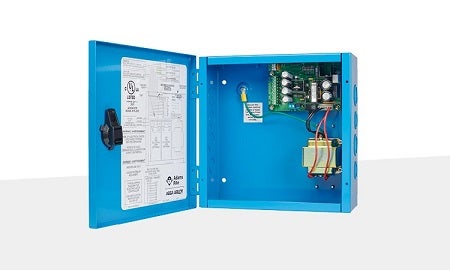

• Hinged, steel cabinet measures 10″ x10-3/8″ x 4-1/8″ [254 mm x 263.5 mm x104.8 mm]
• Blue, baked enamel finish with knockouts for conduit connections
• Sized to accommodate two, sealed lead acid batteries (7AH, not included)
• Initiated by switch closure to control each exit device
• Designed to power up to two 8000/3000 MLR or LR exit devices in Single Input and Dual Input operating modes
• Input power: 115 VAC
• Rated output current: Up to 0.8A per channel continuous rated output current
• Typical output voltage: 24-26 VDC, up to 17 A pull-in current
• Certificate of Compliance, ANSI/UL 1012
